CC2531 Zigbee USB Coordinator & Analyzer Dongle

IEEE 802.15.4 / Zigbee USB dongle used as a coordinator or packet sniffer, popular for Zigbee2MQTT smart-home gateways.

₹450 + 18% GST

SKU: BOTBIT-IOT-14 · Best for: Zigbee coordinator for Zigbee2MQTT smart-home gateways

Qty

Overview

About CC2531 Zigbee USB Coordinator & Analyzer Dongle.

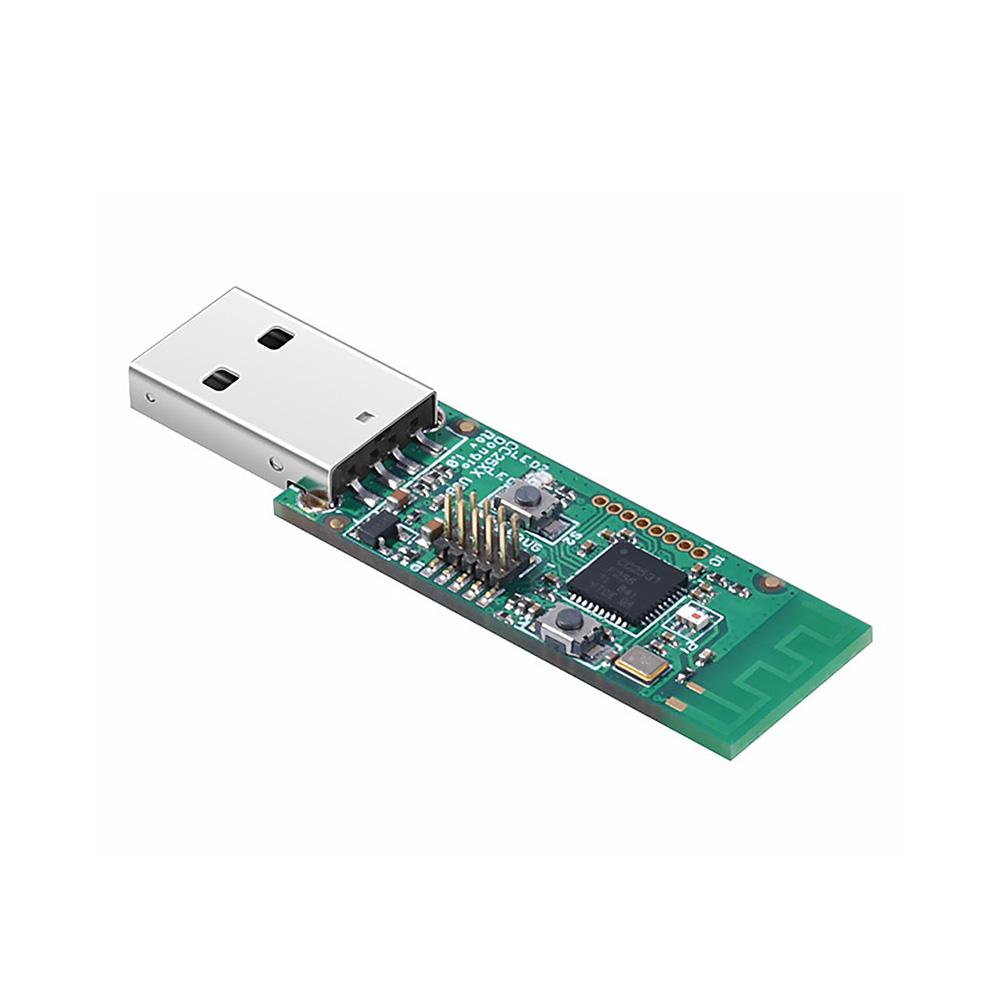

The CC2531 USB dongle is an IEEE 802.15.4 / Zigbee radio built on Texas Instruments' CC2531 system-on-chip, packaged as a plug-in USB stick. In the smart-home world it is famous as the low-cost way to add a Zigbee coordinator to a home server, or to run as a packet sniffer for debugging Zigbee networks. Flashed with the right firmware, it becomes the radio behind a Zigbee2MQTT or ZHA gateway.

It is hugely popular with Indian home-automation hobbyists because it lets you build a local, cloud-free Zigbee hub on a Raspberry Pi or PC and pair Zigbee bulbs, sensors and switches without a vendor's proprietary bridge. The CC2531 combines the 2.4GHz 802.15.4 radio with an 8051 core and native USB, so it enumerates as a serial device over USB.

Two important practicalities: the dongle usually needs to be flashed with coordinator (or sniffer) firmware before use, which traditionally requires a CC Debugger, and the CC2531 is an older, lower-power radio. For small networks it is excellent and cheap; for large modern Zigbee networks many users now prefer newer CC2652/CC2538-based coordinators.

Key features

Why it stands out.

TI CC2531 SoC: 2.4GHz IEEE 802.15.4 / Zigbee radio with native USB

Works as a Zigbee coordinator for Zigbee2MQTT or Home Assistant ZHA

Also usable as a Zigbee/802.15.4 packet sniffer for debugging

Plug-in USB form factor, enumerates as a serial device

8051 MCU core with USB controller on-chip

Firmware-flashable (coordinator, router or sniffer roles)

Specifications

Selection facts.

SoC	Texas Instruments CC2531
Standard	IEEE 802.15.4 / Zigbee
Frequency band	2.4 GHz ISM
MCU core	8051 (8-bit)
Interface	USB (native, enumerates as serial)
Flash	256 KB
RAM	8 KB
Roles	Coordinator, router or packet sniffer (firmware-dependent)
Flashing	Typically via CC Debugger (SoC/CCLoader)

Applications

Where it is used.

Zigbee coordinator for Zigbee2MQTT smart-home gateways
Home Assistant ZHA Zigbee integration
Local, cloud-free Zigbee hub on a Raspberry Pi or PC
Zigbee / 802.15.4 packet sniffing and protocol debugging
Pairing Zigbee bulbs, sensors and switches without a vendor bridge
Learning and experimenting with Zigbee networks

Buying guide

How to choose.

Buy the CC2531 dongle if you want the cheapest route to a self-hosted Zigbee coordinator for a small-to-medium network, or a sniffer for debugging. If you plan a large network (dozens of devices) or want the best range and stability, consider a newer CC2652P/CC2538-based coordinator instead, which usually ships pre-flashed.

Be aware most CC2531 dongles ship without coordinator firmware, so plan to flash it. Traditionally this needs a CC Debugger and a download cable to write Zigbee2MQTT coordinator or sniffer firmware; some sellers offer pre-flashed units, so check the listing if you want to skip flashing.

Pair it with a host running Zigbee2MQTT or Home Assistant ZHA on a Raspberry Pi, mini-PC or server. A USB extension cable helps move the dongle away from USB 3.0/RF interference for better pairing range. Confirm whether you need a CC Debugger before ordering.

FAQ

Common questions.

Does the dongle come ready to use, or do I have to flash it?

Most CC2531 dongles ship blank or with generic firmware and need to be flashed with coordinator (or sniffer) firmware before use. Some sellers offer pre-flashed units, so check the listing; if it is not pre-flashed you will need to program it yourself.

What do I need to flash it?

Traditionally a TI CC Debugger plus a download/debug cable, using tools like TI's SmartRF Flash Programmer or CCLoader to write the Zigbee2MQTT coordinator firmware. Without a pre-flashed unit, budget for a CC Debugger.

Does it work with Zigbee2MQTT and Home Assistant?

Yes, that is its main use. Flashed with coordinator firmware it acts as the Zigbee radio for Zigbee2MQTT or Home Assistant's ZHA, letting you build a local Zigbee hub and pair third-party Zigbee devices.

How many Zigbee devices can it handle?

The CC2531 is an older, lower-memory radio best suited to small or medium networks. For large networks (many dozens of devices) or better range, a newer CC2652/CC2538-based coordinator is recommended.

Can I use it as a packet sniffer?

Yes. With sniffer firmware the CC2531 works as an IEEE 802.15.4/Zigbee packet sniffer, capturing traffic for analysis in tools like Wireshark, which is useful for debugging Zigbee networks.

What is in the box?

Usually just the CC2531 USB dongle. A CC Debugger and download cable for flashing are typically sold separately unless you order a bundle or a pre-flashed unit.
