Raspberry Pi Zero 2 W

Ultra-compact SBC with quad-core 64-bit Cortex-A53, 512MB RAM and onboard WiFi/Bluetooth for embedded projects.

₹1,699 + 18% GST

SKU: BOTBIT-DEV-07 · Best for: Compact smart-camera and computer-vision projects using the CSI camera port

Qty

Overview

About Raspberry Pi Zero 2 W.

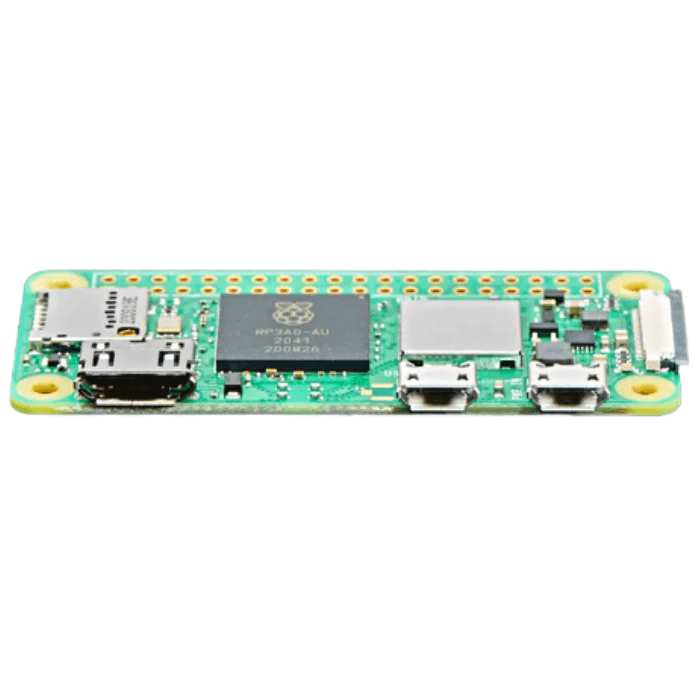

The Raspberry Pi Zero 2 W is an ultra-compact single-board computer that packs surprising power into a tiny footprint. It uses a quad-core 64-bit Arm Cortex-A53 processor (the same core family as the Pi 3) running at 1 GHz with 512MB of RAM, plus built-in 2.4 GHz WiFi and Bluetooth, all on a board only about the size of a stick of gum.

It is popular in India for space-constrained and low-power embedded projects: smart cameras, portable gadgets, IoT sensors, retro-gaming handhelds and anything that needs a real Linux computer in a minimal form factor. Compared with the original single-core Pi Zero W, the Zero 2 W is dramatically faster thanks to its quad-core SoC, while keeping the same small size, pinout and low price.

It has the familiar 40-pin GPIO footprint (unpopulated, so you solder your own header), a CSI camera connector and mini-HDMI output, making it a favourite base for compact custom builds where a full-size Pi would be too big or power-hungry.

Key features

Why it stands out.

Quad-core 64-bit Arm Cortex-A53 SoC at 1 GHz, far faster than the original Pi Zero W

512MB LPDDR2 RAM in an ultra-compact 65 x 30 mm board

Built-in 2.4 GHz 802.11 b/g/n WiFi and Bluetooth 4.2 / BLE

40-pin GPIO footprint (unpopulated) compatible with the standard Pi HAT layout

Mini-HDMI output and a CSI-2 camera connector for compact camera projects

Micro-USB for power and a second micro-USB OTG data port

Specifications

Selection facts.

Processor	Broadcom BCM2710A1 (RP3A0), quad-core Cortex-A53 @ 1 GHz
RAM	512MB LPDDR2
Wireless	2.4 GHz 802.11 b/g/n WiFi, Bluetooth 4.2 / BLE
GPIO	40-pin header footprint (unpopulated)
Video Output	Mini-HDMI (up to 1080p)
Camera Connector	CSI-2 camera port (mini connector)
USB	1x micro-USB OTG (data) + 1x micro-USB (power)
Storage	microSD card slot
Power Input	5V via micro-USB
Dimensions	65 x 30 mm

Applications

Where it is used.

Compact smart-camera and computer-vision projects using the CSI camera port
Low-power IoT sensor nodes and WiFi-connected data loggers
Portable and handheld gadgets, including small retro-gaming builds
Wearable or space-constrained embedded Linux projects
Home-automation controllers hidden inside small enclosures
Learning Linux and Python on an affordable, tiny board

Buying guide

How to choose.

Choose the Pi Zero 2 W when size, weight and low power draw are the priority and you still want a real quad-core Linux computer with WiFi. It is ideal for embedded builds, cameras and portable gadgets where a full-size Pi would not fit.

If you need heavy performance, lots of RAM, Gigabit Ethernet or many USB ports, step up to the Pi 4 or Pi 5. If you only need simple microcontroller I/O rather than a full Linux OS, an Arduino or Pico may suit better. The Zero 2 W shines specifically in compact, connected, low-power roles.

Pair it with a 5V micro-USB power supply, a microSD card flashed with Raspberry Pi OS, and the adapters you need: mini-HDMI to HDMI for video and micro-USB OTG for USB devices. The GPIO header is not pre-soldered, so buy a 40-pin header (and solder it) if your project uses GPIO or HATs.

FAQ

Common questions.

Does the Pi Zero 2 W come with a soldered GPIO header?

Standard Zero 2 W boards ship with the 40-pin GPIO footprint unpopulated, so you solder on your own header or wires. Some resellers sell a pre-soldered 'WH'-style variant. Check this listing, and if you need GPIO or HATs, plan to add and solder a header.

What connectors and adapters do I need?

It uses mini-HDMI for video (not full-size, so you need a mini-HDMI adapter or cable), a micro-USB OTG port for USB devices, a separate micro-USB port for power, and a mini CSI connector for the camera. Budget for these small adapters when ordering.

How much faster is it than the original Pi Zero W?

Considerably. The Zero 2 W has a quad-core Cortex-A53 at 1 GHz versus the single-core Zero W, giving roughly a 4-5x multi-threaded speed-up while keeping the same size, price bracket and 40-pin layout, so it is a strong drop-in upgrade.

Can it run a full Raspberry Pi OS desktop?

It can run Raspberry Pi OS, but with only 512MB RAM the full desktop is limited. It is best used headless (via SSH), or with the Lite OS, or for focused single-purpose apps. For a smooth desktop experience, choose a Pi 4 or Pi 5 instead.

Does it have built-in WiFi and Bluetooth?

Yes. WiFi (2.4 GHz 802.11 b/g/n) and Bluetooth 4.2/BLE are built onto the board, which is a major reason it is chosen for compact IoT projects. Note it is 2.4 GHz only, with no 5 GHz WiFi or wired Ethernet.

Is storage included?

No. You supply a microSD card flashed with your chosen OS using Raspberry Pi Imager. An A1/A2-rated card of 16GB or more is recommended for reasonable responsiveness.
