WS2812B Addressable RGB LED Strip 1m (60 LEDs, NeoPixel)

1 meter of 60 individually-addressable 5V WS2812B RGB LEDs (NeoPixel-compatible), single-wire data, IP20 non-waterproof.

₹350 + 18% GST

SKU: BOTBIT-DSP-07 · Best for: Ambient and mood lighting for desks, shelves and PC cases

Qty

Overview

About WS2812B Addressable RGB LED Strip 1m (60 LEDs, NeoPixel).

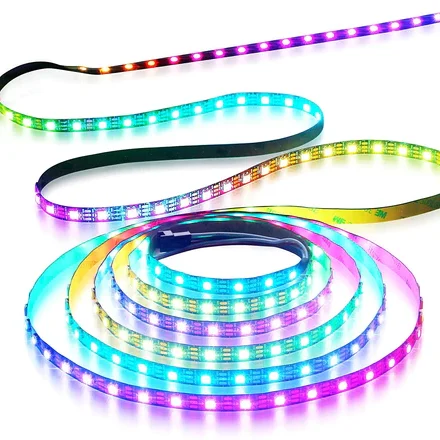

The WS2812B Addressable RGB LED Strip is one metre of 60 individually-controllable RGB LEDs - the parts most makers know as NeoPixels. Each WS2812B LED has a tiny driver chip built right inside the LED package, so you can set the exact colour and brightness of every single LED independently using just one data wire. This is what makes rainbow chases, colour gradients and reactive lighting effects possible.

The strip runs on 5V and uses a single-wire data protocol, so you connect just 5V, GND and one data pin (DIN) to your microcontroller. The FastLED and Adafruit NeoPixel libraries make animations easy on Arduino, ESP32, ESP8266 and Raspberry Pi Pico. This particular strip is the IP20 non-waterproof version, meaning it has no silicone coating - ideal for indoor projects and enclosures.

At around Rs 350 for a metre of 60 LEDs, it is the standard building block for ambient lighting, signage, wearables and status indicators. The strip can be cut between each LED at the marked copper pads and connected at either end via the pre-tinned pads or connectors.

Key features

Why it stands out.

60 individually-addressable WS2812B RGB LEDs per metre (NeoPixel-compatible)

Built-in driver chip in every LED - set colour and brightness per pixel over one data wire

5V single-wire data protocol; only 5V, GND and DIN needed

IP20 non-waterproof (no coating) - designed for indoor use

Cuttable between each LED at marked pads and solderable at either end

Fully supported by FastLED and Adafruit NeoPixel libraries

Specifications

Selection facts.

LED type	WS2812B addressable RGB (integrated driver)
Density	60 LEDs per metre
Length	1 metre
Operating voltage	5V DC
Data protocol	Single-wire (800 kHz), NeoPixel-compatible
Colour depth	24-bit (8 bits each R, G, B) - 16.7 million colours
Max current	Approx. 60 mA per LED at full white (~3.6A per metre)
Ingress protection	IP20 (non-waterproof, indoor)
Cut points	Between every LED at marked copper pads

Applications

Where it is used.

Ambient and mood lighting for desks, shelves and PC cases
Reactive and music-synced light effects
Signage, logos and decorative displays
Status and notification indicators for IoT (WLED on ESP32/ESP8266)
Wearables, costumes and props
Light painting and photography effects

Buying guide

How to choose.

Choose this 60-LED/metre IP20 strip for indoor addressable-lighting projects where you want per-pixel control - rainbows, chases, gradients and reactive effects. If your project will be exposed to moisture, buy an IP65/IP67 coated strip instead; this one has no waterproofing.

Plan your power: at full white each LED draws up to about 60mA, so a full metre of 60 LEDs can pull around 3.6A. For anything beyond a few LEDs, power the strip from a dedicated 5V supply (not the microcontroller's regulator) and connect grounds together. Adding a ~330 ohm resistor on the data line and a large capacitor across 5V/GND is good practice.

It is NeoPixel-compatible, so use FastLED or Adafruit NeoPixel on Arduino/ESP32, or flash WLED onto an ESP32/ESP8266 for a ready-made app-controlled setup. Mind the data direction - connect DIN at the arrow-marked input end of the strip.

FAQ

Common questions.

Is this the same as a NeoPixel strip?

Yes. WS2812B is the chip Adafruit brands as NeoPixel, so this strip works with the Adafruit NeoPixel and FastLED libraries and with WLED firmware.

How do I wire it?

Connect 5V, GND and one data pin (DIN) from your microcontroller to the strip's input end (follow the arrows). A ~330 ohm resistor on the data line and a capacitor across 5V/GND are recommended.

How much power does it need?

Up to about 60mA per LED at full white, so roughly 3.6A for a full metre of 60 LEDs. Use a dedicated 5V supply for more than a handful of LEDs and share the ground with your board.

Is it waterproof?

No. This is the IP20 version with no coating, meant for indoor use. For outdoor or damp locations choose an IP65/IP67 coated strip.

Can I cut it to length?

Yes. Cut between any two LEDs at the marked copper pads. Each remaining segment still works, and you can solder wires to the pads at either end.

Which board can drive it?

Arduino, ESP32, ESP8266 and Raspberry Pi Pico all work. ESP32/ESP8266 with WLED is very popular for app- and voice-controlled lighting. Level-shifting the 3.3V data to 5V improves reliability on longer runs.
