Twin-motor tractor layout adds power redundancy for safer long-endurance survey flights
In stock
Fixed Wing Vtol Kits
MFE Believer Long-Endurance Survey Kit
The MFE (MakeFlyEasy) Believer is a 1960mm twin-motor fixed-wing built for long-endurance aerial survey and mapping.
₹58,990 + 18% GST
SKU: BOTBIT-AFK-04 · Best for: Large-area aerial mapping and photogrammetry
Overview
About MFE Believer Long-Endurance Survey Kit.
The MFE (MakeFlyEasy) Believer is a 1960mm twin-motor fixed-wing built for long-endurance aerial survey and mapping. Its twin-tractor layout places two motors on the wing for redundancy and efficient cruise, while a large fuselage carries demanding payloads such as mirrorless and tilt-photography cameras. Constructed from EPO foam reinforced with carbon fiber and engineering plastics, it balances light weight against the rigidity a survey platform needs, and the wings detach quickly for transport.
With a 51dm² wing and a maximum take-off weight of 5.5kg, the Believer carries up to about 1kg of payload and a large 6S 22000mAh battery in its dedicated compartment, enabling very long flights and ranges quoted up to around 150km under favourable conditions at a ~20m/s cruise. It is hand-launched and recovered by parachute, which suits operations where a runway is unavailable and a controlled descent protects the payload.
The Believer is aimed at professional survey and mapping operators, GIS and engineering firms, and serious integrators in India who need a proven, payload-capable fixed-wing for large-area data capture. It is offered in kit, PNP and PPK-ready configurations so teams can match it to their autopilot and camera workflow.
Key features
Why it stands out.
Large fuselage and ~1kg payload carry mirrorless and tilt-photography survey cameras
6S 22000mAh battery compartment enables very long flights and extended range
EPO reinforced with carbon fiber and engineering plastics for a light, rigid airframe
Quick-detach wings and hand-launch with parachute recovery for runway-free operation

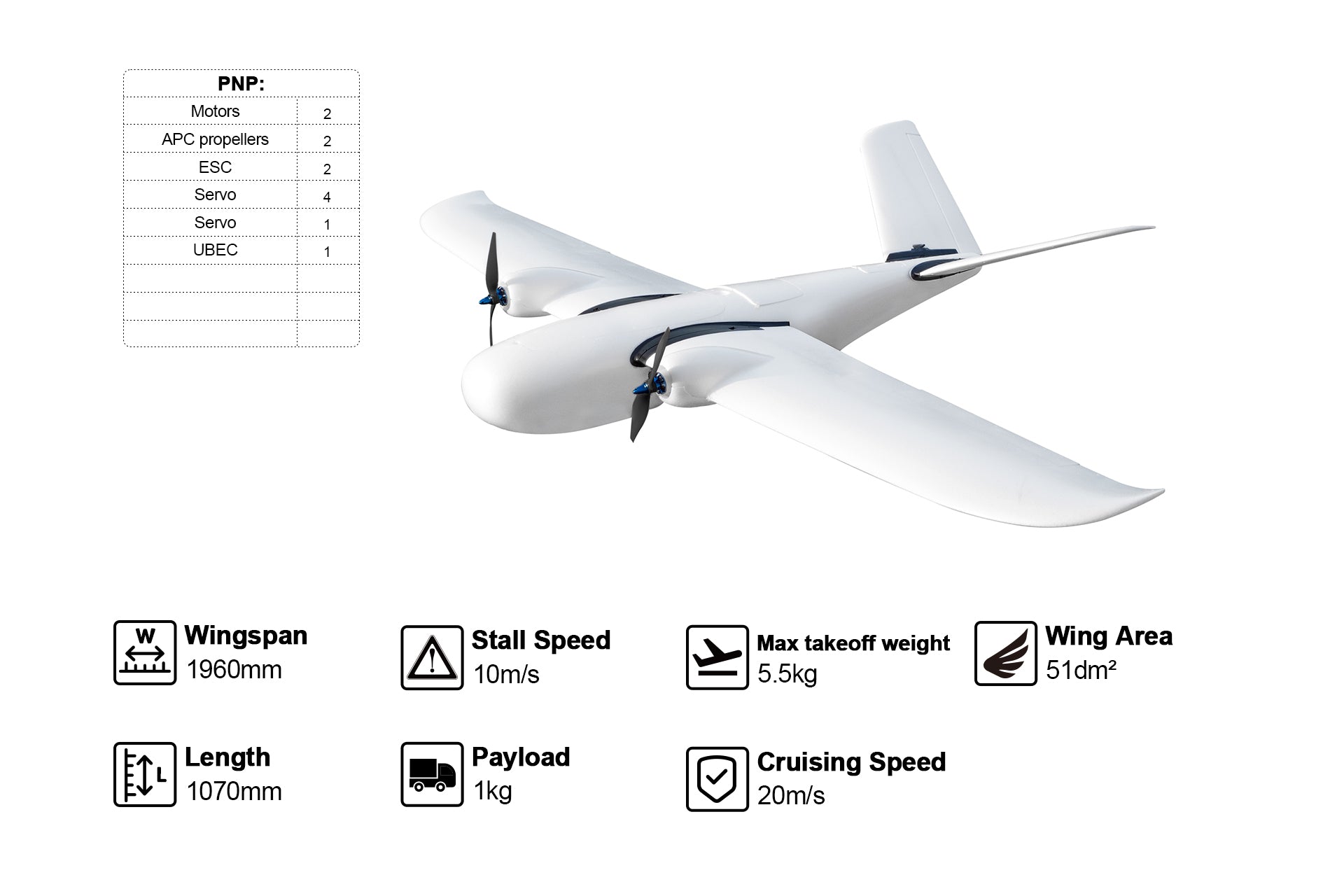

Specifications
Selection facts.

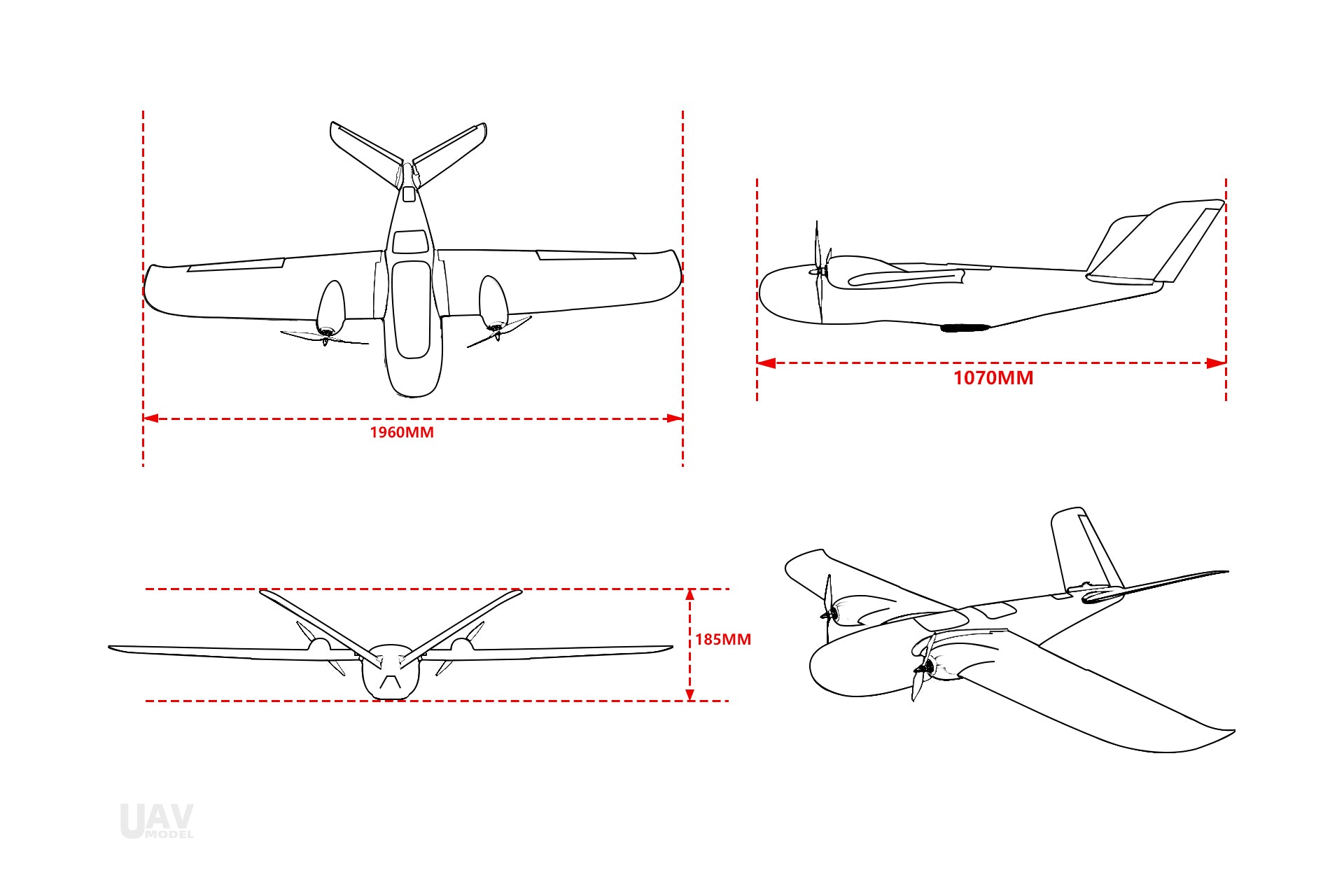

| Wingspan | 1960 mm |
|---|---|
| Fuselage length | 1070 mm |
| Fuselage height | 185 mm |
| Wing area | 51 dm² |
| Max take-off weight | 5.5 kg |
| Max payload | ~1 kg |
| Cruise speed | 20 m/s |
| Stall speed | 10 m/s |
| Recommended battery | 6S 22000 mAh LiPo |
| Airframe material | EPO, EVA, carbon fiber, engineering plastics |
Applications
Where it is used.
- Large-area aerial mapping and photogrammetry
- Topographic and terrain surveying
- Agriculture, forestry and land-use monitoring
- Power line and infrastructure inspection
- Tilt photography for 3D reconstruction
- Environmental and conservation monitoring
Buying guide
How to choose.
The Believer is a professional survey airframe, so choose the configuration that matches your workflow: a bare kit if you have your own power and electronics, PNP if you want motors and ESCs fitted, or a PPK-ready build if you need centimetre-grade positioning. A 6S 22000mAh battery and a survey camera under ~1kg are the typical payload, and these drive your balance and endurance.
Plan your launch and recovery around the airframe's design. The Believer hand-launches and lands by parachute, so confirm you have a competent launch crew and a parachute system suited to your all-up weight. Its quick-detach wings and 1960mm span make transport manageable in a vehicle, which matters for remote survey sites.
Select the Believer when endurance, payload and twin-motor redundancy outweigh the need for vertical take-off. If your sites are confined and lack space for hand launch or parachute landing, a VTOL fixed-wing such as the MFE Striver Mini is a better match; for small, casual mapping a single-motor wing is lighter and cheaper.
FAQ
Common questions.
What makes the Believer suited to long-endurance survey?
Its 1960mm twin-motor airframe pairs an efficient 51dm² wing with a large fuselage that holds a 6S 22000mAh battery and up to ~1kg of camera payload. This combination supports very long flights, with range quoted up to around 150km in favourable conditions at a ~20m/s cruise.
How much payload can the Believer carry?
It supports a maximum payload of about 1kg, enough for mirrorless cameras and tilt-photography rigs; for example it can carry a Sony A7R-class body. Always balance the aircraft with the actual payload fitted and stay within the 5.5kg maximum take-off weight.
How is the Believer launched and recovered?
The Believer is hand-launched and recovered using a parachute, so it does not need a runway. This makes it well suited to remote survey sites, but you must have a launch crew and a parachute system rated for your all-up weight.
What configurations are available?
MakeFlyEasy offers the Believer in kit, PNP and PPK-ready versions, and in twin-motor (4+1 / 4+2 style) options at the supplier level. Choose based on whether you want to install your own electronics and whether you need PPK positioning for high-accuracy mapping.
What battery and cruise speed does it use?
A 6S 22000mAh LiPo is the recommended pack, and the recommended cruise speed is about 20m/s with a stall speed near 10m/s. Matching battery, payload and cruise speed is key to achieving the long endurance the platform is known for.
Is the airframe durable for repeated field use?
Yes. It is built from EPO foam reinforced with carbon fiber and engineering plastics, giving a light but rigid structure. The quick-detach wings simplify transport and field repairs, and EPO can be repaired with foam-safe adhesives if damaged.
