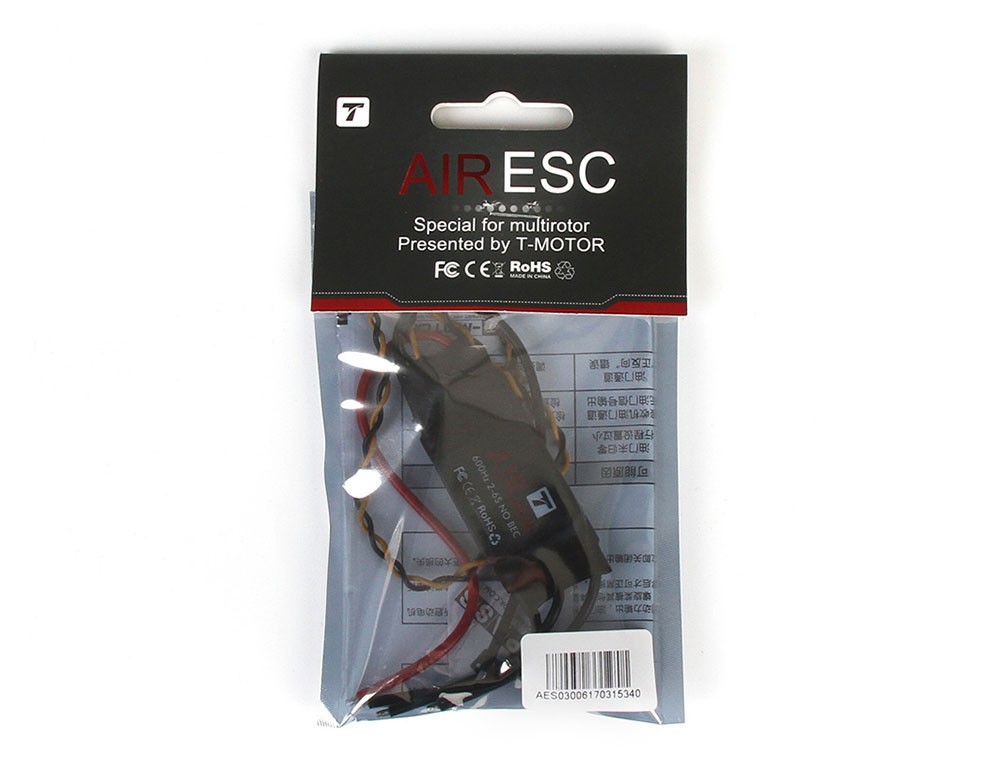

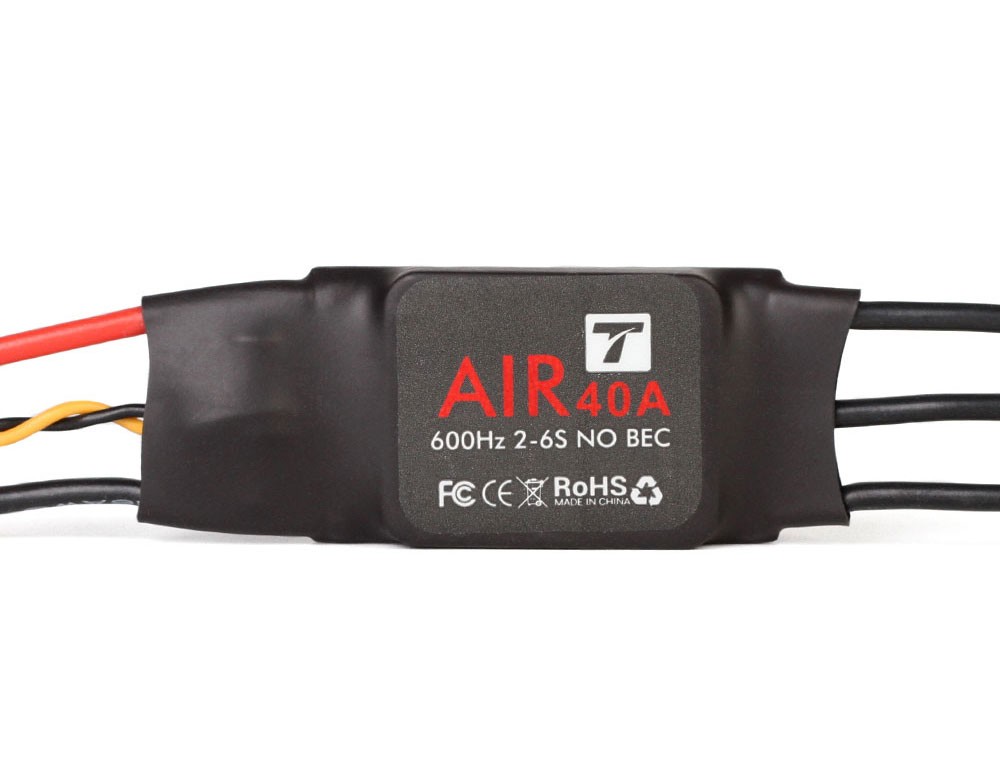

T-Motor AIR 40A 6S ESC
The T-Motor AIR 40A 6S ESC is a single brushless speed controller from T-Motor's AIR series, designed as a cost-effective, reliable propulsion option for multi-rotor UAVs.
₹4,999 + 18% GST
SKU: BOTBIT-ESC-05 · Best for: 330-450mm multi-rotor UAV propulsion
Overview
About T-Motor AIR 40A 6S ESC.
The T-Motor AIR 40A 6S ESC is a single brushless speed controller from T-Motor's AIR series, designed as a cost-effective, reliable propulsion option for multi-rotor UAVs. It uses T-Motor's optimised core program rather than open-source firmware, tuned for fast throttle response and excellent compatibility with disc-type and standard brushless motors. A twisted-pair throttle signal cable reduces crosstalk and electrical interference for stable flight.
It is rated at 40A continuous with 60A peaks and accepts a wide 2-6S LiPo input, giving it broad usefulness from lighter 3-4S builds up to 6S platforms. The ESC is a NO-BEC design, so it does not power onboard electronics, and it supports a throttle signal frequency of up to 621Hz for tight control loops. An aluminium heatsink and low-ESR construction help it sustain its rated current even in warm conditions.
Aimed at 330-450mm multirotors and similar UAV platforms, the AIR 40A suits builders who want dependable, well-matched propulsion from a respected motor brand. It is particularly well suited to those already using T-Motor AIR-series motors, but works with most brushless motors within its current rating, making it a solid choice for camera, mapping and general-purpose drones.
Key features
Why it stands out.
Wide 2-6S LiPo input with 40A continuous and 60A peak current
Twisted-pair throttle signal cable reduces interference for stable flight
High 621Hz signal frequency supports tight, responsive control loops
Aluminium heatsink and low-ESR design sustain rated current under heat
Specifications
Selection facts.
| Firmware | T-Motor optimised (proprietary) |
|---|---|
| Continuous Current | 40A |
| Peak Current | 60A |
| Battery Input | 2-6S LiPo |
| BEC | No |
| Signal Frequency | Up to 621Hz |
| Weight | ~26 g |
| Dimensions | 68 x 25 x 8.7 mm |
| Protections | Low-voltage, over-heat, signal-loss |
Applications
Where it is used.
- 330-450mm multi-rotor UAV propulsion
- Camera and aerial filming drone builds
- Mapping and survey multirotor platforms
- Pairing with T-Motor AIR-series motors
- Hexacopter and octocopter propulsion on 4-6S
- General-purpose prosumer drone builds
Buying guide
How to choose.
Choose the AIR 40A when you want reliable, well-tuned propulsion from an established motor manufacturer rather than open-source flexibility. It is an ideal partner for T-Motor AIR-series motors but works with most brushless motors within its 40A continuous rating. Keep your motor and prop current comfortably below 40A so the ESC stays cool over long flights.
Because it is a NO-BEC ESC, plan separate regulated 5V power for your flight controller, receiver and accessories using a dedicated BEC or PDB. The wide 2-6S input gives you flexibility to use it across several builds, but always confirm your battery voltage and motor draw match the ESC before flying.
If you need open-source firmware, DShot digital protocols or built-in telemetry, a BLHeli_32 or AM32 ESC may be a better fit. For dependable analog-controlled multirotor propulsion with strong thermal performance and brand support, however, the T-Motor AIR 40A is a trusted, vendor-neutral option available in India.
FAQ
Common questions.
Does the T-Motor AIR 40A have a BEC?
No. It is a NO-BEC ESC, so it does not supply power to your flight controller or receiver. You will need a separate BEC or a power distribution board with voltage regulation to provide the 5V your onboard electronics require.
What battery voltage can I use?
It supports a wide 2-6S LiPo input, so you can use it on lighter 3-4S builds up to higher-voltage 6S platforms. Ensure your motor and propeller combination keeps current within the 40A continuous and 60A peak ratings at your chosen voltage.
Can I flash BLHeli onto this ESC?
No. The AIR 40A uses T-Motor's own optimised core program, which is tuned for response and motor compatibility but is not an open-source firmware you can replace with BLHeli or AM32. If you need open-source firmware and DShot, choose a different ESC.
Is it a good match for T-Motor AIR motors?
Yes. T-Motor designs the AIR ESC and AIR-series motors to work together, with firmware optimised for that combination. It also works well with most other brushless motors within its current rating, so it is flexible across many multirotor builds.
What size drone is the AIR 40A intended for?
T-Motor positions it for roughly 330-450mm class multi-rotor UAVs and similar platforms. With 40A continuous and 60A peak current it suits the motor-and-prop combinations used on camera, mapping and general-purpose drones in that size range.
Does it support modern flight controllers?
Yes. With a throttle signal frequency up to 621Hz and standard ESC signalling, it is compatible with mainstream flight controllers. The twisted-pair signal cable helps reduce interference, contributing to stable, reliable throttle control during flight.
