BLHeli firmware with OneShot125 for fast, low-latency throttle response
In stock
Esc

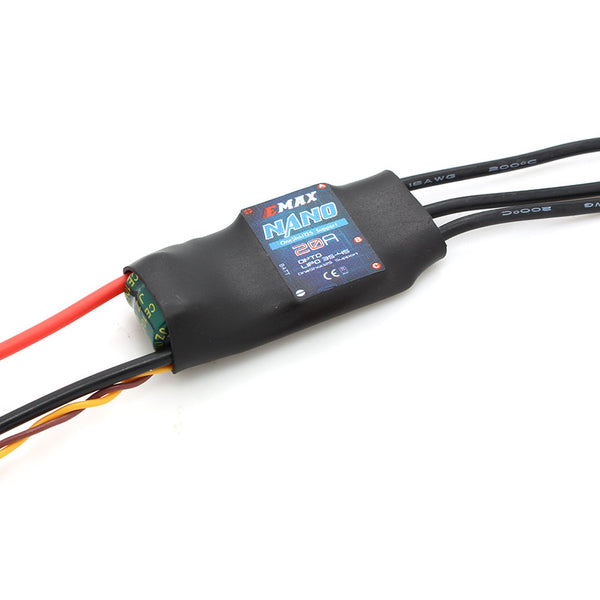

EMAX Nano 20A BLHeli ESC
The EMAX Nano 20A BLHeli ESC is a compact, lightweight speed controller from the EMAX Nano series, built specifically for racing-class multirotors.
₹899 + 18% GST
SKU: BOTBIT-ESC-03 · Best for: 210-250mm FPV racing quadcopter builds
Overview
About EMAX Nano 20A BLHeli ESC.
The EMAX Nano 20A BLHeli ESC is a compact, lightweight speed controller from the EMAX Nano series, built specifically for racing-class multirotors. It runs BLHeli firmware with OneShot125 support, giving fast, low-latency throttle response, and uses active braking (damped light) for crisp motor stops that improve agility on small quads. An opto-style design with a twisted-pair throttle signal line helps reject electrical noise for clean signal transmission.
Rated at a real 20A continuous with brief peaks above that, it is designed for 3-4S LiPo packs and pairs naturally with the high-kV motors used on 210-250mm FPV racers. EMAX states compatibility with mainstream flight controllers including Skyline32, Naze32, Pixhawk and CC3D, and it can be flashed and programmed via standard BLHeli tools or a programming card.
This ESC targets FPV racing pilots and mini-quad builders who want a proven, affordable controller in a small footprint. It is not the latest DShot-only board, but its BLHeli OneShot125 support, active braking and low weight make it a dependable choice for 5-inch racing builds and similar compact multirotors where responsiveness and minimal mass matter.
Key features
Why it stands out.
Active braking (damped light) sharpens motor stops for more agile racing flight
Lightweight, compact board ideal for 210-250mm mini racing quads
Opto design with twisted-pair signal wire rejects noise for clean control
Broad flight-controller compatibility and easy BLHeli programming
Specifications
Selection facts.
| Firmware | BLHeli (OneShot125) |
|---|---|
| Continuous Current | 20A |
| Battery Input | 3-4S LiPo |
| Weight | ~17 g (with wires) |
| Dimensions | 45 x 21 x 7 mm |
| Braking | Active braking (damped light) |
| Protections | Low-voltage, over-heat, signal-loss |
Applications
Where it is used.
- 210-250mm FPV racing quadcopter builds
- 5-inch mini-quad freestyle setups
- High-kV brushless motor propulsion on 3-4S
- Replacement ESC for BLHeli-based racers
- DIY mini multirotor projects needing low weight
- Educational FPV propulsion experiments
Buying guide
How to choose.
Pick the Nano 20A when building a 5-inch racer or freestyle quad with motors that stay under 20A continuous, typically 2204-2306 class on 3-4S. If your motor and prop combination peaks much higher, choose a 30A or 40A ESC instead so the controller has thermal headroom for sustained full-throttle racing.
This is a single ESC, so you will need four for a quadcopter and should mount them on the arms with the twisted signal pairs routed cleanly to the flight controller. The opto design rejects noise well, but keep signal wires away from high-current paths to maintain reliable throttle control.
Confirm the protocol you need. The Nano 20A runs BLHeli with OneShot125, which is excellent for analog-fast control but is not the newer DShot digital standard. If you specifically want DShot and telemetry, look at EMAX's BLHeli_S Bullet series or a comparable DShot-capable ESC; for proven, lightweight BLHeli racing it remains a great value in India.
FAQ
Common questions.
What size quad is the EMAX Nano 20A for?
It is aimed at mini racing and freestyle quads, typically 210-250mm frames running 5-inch props on 3-4S. Its low weight and OneShot125 response suit agile builds where every gram and millisecond of latency counts.
Does it support DShot?
This original Nano 20A runs BLHeli firmware with OneShot125 and analog protocols, not DShot. If you need DShot digital throttle and telemetry, choose a BLHeli_S or BLHeli_32 ESC such as EMAX's Bullet series instead, which adds those newer protocols.
What is active braking and why does it matter?
Active braking, also called damped light, makes the motor decelerate quickly when you reduce throttle rather than coasting. On a racing quad this gives sharper, more controllable handling, especially through tight corners and rapid direction changes, improving overall flight precision.
Does this ESC have a BEC?
The Nano series uses an opto-style design and does not provide a power BEC for your electronics. You will need a separate BEC or a flight controller and PDB that regulate 5V power from the main battery to run your receiver and accessories.
Which flight controllers is it compatible with?
EMAX lists compatibility with mainstream controllers including Skyline32, Naze32, Pixhawk and CC3D, among others. As long as your flight controller outputs a standard ESC signal at the OneShot125 or PWM rate, it will work with this ESC.
Can I reprogram or update the firmware?
Yes. Being BLHeli-based, it can be configured and updated with standard BLHeli tools such as BLHeliSuite, or set using a programming card. This lets you adjust timing, braking and other parameters to fine-tune the ESC for your specific motors.
