Integrated 10x optical-zoom camera lets you read distant detail without flying closer to the subject
In stock
Payload Cameras
Tarot TL10X-T2D 10x Zoom Gimbal Camera

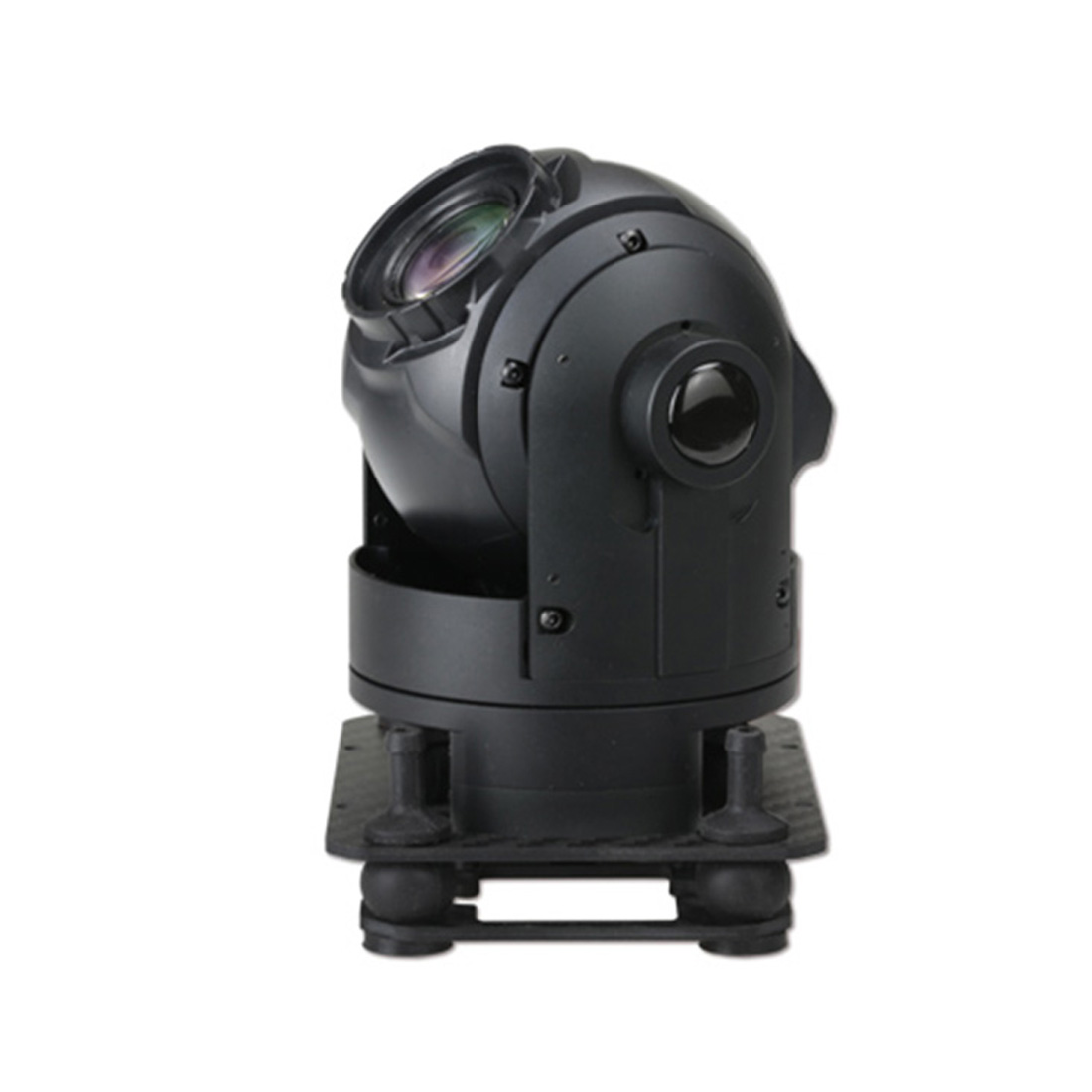

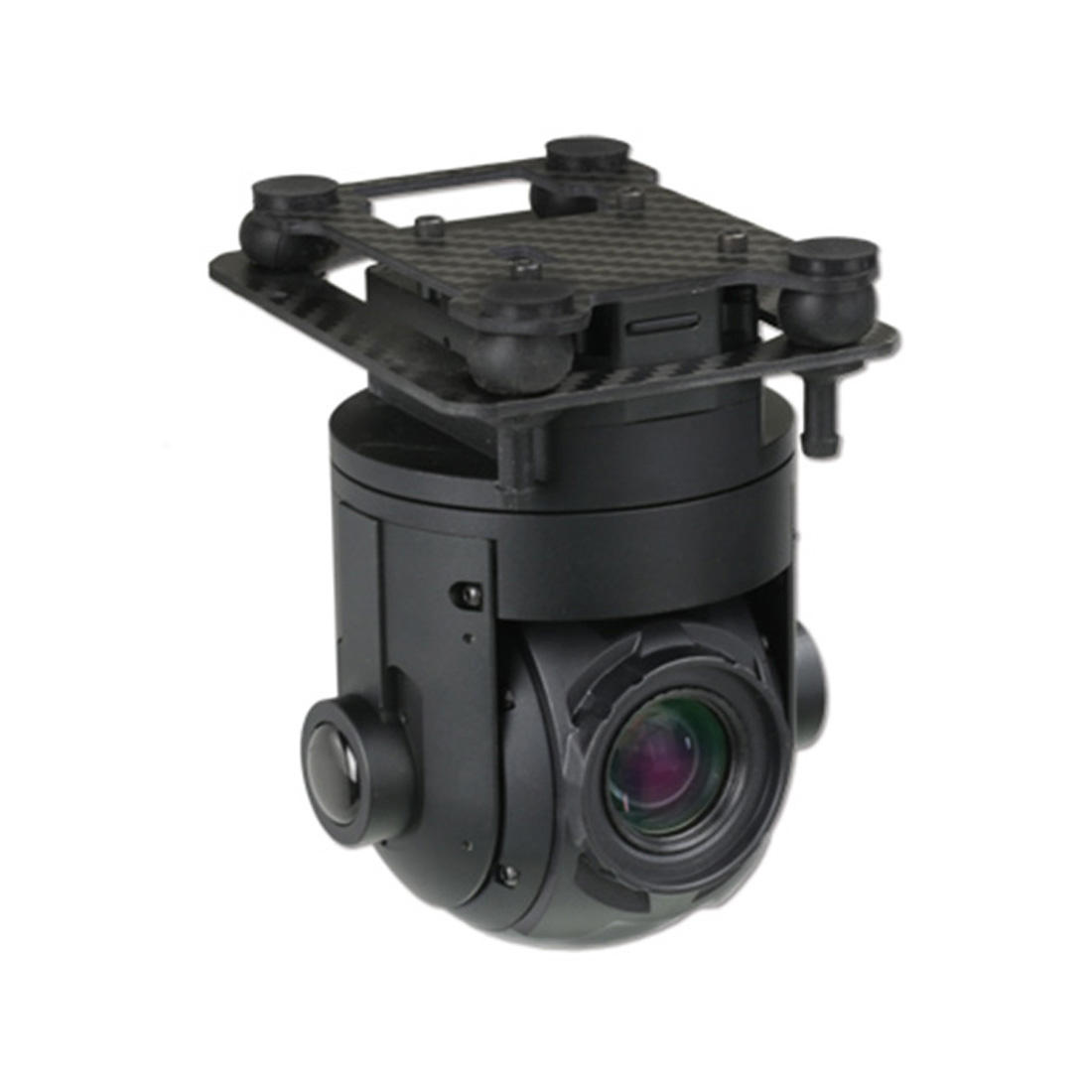

The Tarot TL10X-T2D is a 2-axis stabilized ball gimbal with an integrated 10x optical-zoom camera, designed as a ready-to-fly observation and inspection payload for UAVs and unmanned ground/marine platforms.
₹72,999 + 18% GST
SKU: BOTBIT-PAY-02 · Best for: Power-line, tower and pipeline standoff inspection
Overview
About Tarot TL10X-T2D 10x Zoom Gimbal Camera.
The Tarot TL10X-T2D is a 2-axis stabilized ball gimbal with an integrated 10x optical-zoom camera, designed as a ready-to-fly observation and inspection payload for UAVs and unmanned ground/marine platforms. The camera uses a 1/3-inch CMOS sensor with roughly 4 megapixels of effective resolution and a motorized f/4.9-49mm zoom lens, outputting Full HD 1920x1080 at 30 fps over a Micro HDMI interface so you can feed it straight into a video transmitter or recorder.
Stabilization is handled on two axes (pitch and heading) by brushless motors, with a quoted jitter angle of about plus or minus 0.01 degrees that keeps the long-zoom image steady even at high magnification, where the smallest vibration is normally magnified. The gimbal accepts standard drone control protocols including S.Bus, serial and CAN, letting operators pan, tilt and command zoom from the transmitter. It runs on 12-25V at roughly 6.5W and weighs about 303 g, with low-light sensitivity down to around 0.05 lux.
It targets professional and industrial users: power-line and pipeline inspection, search-and-rescue spotting, security and perimeter monitoring, and survey teams who need to read detail at standoff distance from a fixed-wing, multirotor, USV or ground robot.
Key features
Why it stands out.
Two-axis brushless stabilization with ~0.01 deg jitter keeps the zoomed image steady in flight
Full HD 1080p/30 output over Micro HDMI feeds directly into VTX or onboard recorders
Wide protocol support (S.Bus, serial, CAN) enables pan, tilt and zoom control from the transmitter
Compact ~303 g all-weather ball housing suits UAV, USV, UGV and robot platforms
Specifications
Selection facts.
| Configuration | 2-axis stabilized ball gimbal with zoom camera |
|---|---|
| Sensor | 1/3-inch CMOS, ~4 MP effective |
| Optical zoom | 10x (f/4.9-49 mm lens) |
| Max resolution | 1920 x 1080 @ 30 fps |
| Min illumination | 0.05 lux (F1.6) |
| Video output | Micro HDMI |
| Control protocols | S.Bus / serial / CAN |
| Jitter angle | +/- 0.01 deg |
| Operating voltage | 12-25 V, ~6.5 W |
| Weight | ~303 g |
Applications
Where it is used.
- Power-line, tower and pipeline standoff inspection
- Search-and-rescue spotting and wide-area scanning
- Perimeter security and monitoring from UAVs
- Maritime monitoring on unmanned surface vessels
- Ground-robot reconnaissance and remote observation
- Survey and asset monitoring needing optical zoom detail
Buying guide
How to choose.
Decide whether you need optical reach versus map detail. The TL10X-T2D's 10x optical zoom is built for observation and inspection where you must read distant detail from a safe standoff. It is not a mapping/orthophoto camera, so survey teams needing nadir mapping should pair it with a dedicated mapping payload instead.
Plan your video and control chain. The camera outputs 1080p/30 over Micro HDMI, so confirm your video transmitter or recorder accepts HDMI input, and that your flight controller or radio can issue S.Bus, serial or CAN commands for pan, tilt and zoom. Verify the 12-25V supply rail and budget for the ~6.5W draw on your power system.
Account for payload and platform. At roughly 303 g this is a 2-axis (not 3-axis) gimbal, so it is lighter than full 3-axis zoom heads but offers less roll correction; pick a stable airframe and good vibration isolation. In India this model has sold in the mid-five-figure-rupee range, so confirm current price and availability with BotBit before specifying it into a build.
FAQ
Common questions.
Is the TL10X-T2D zoom optical or digital?
It provides genuine 10x optical zoom via a motorized f/4.9-49mm lens, so you keep full image quality as you zoom in, unlike digital zoom which crops and degrades the picture. This optical reach lets operators read distant detail from a safe standoff distance during inspection and monitoring flights.
What video output does it use?
The camera outputs Full HD 1920x1080 at 30 fps over a Micro HDMI interface. Make sure your video transmitter or onboard recorder accepts HDMI input. The MP4/JPEG capture can also be stored to a Micro SD card on the camera depending on configuration.
Is this a 2-axis or 3-axis gimbal?
The TL10X-T2D is a 2-axis stabilized ball gimbal, correcting pitch and heading. It does not actively correct roll like a 3-axis head, which keeps it lighter at around 303 g. For most observation and inspection flying the two-axis stabilization plus ~0.01 deg jitter angle holds the zoomed image steady.
What platforms is it suitable for?
Tarot designs this gimbal for fixed-wing and multirotor UAVs as well as unmanned surface vessels, unmanned ground vehicles and robots. Its wide 12-25V input and S.Bus, serial and CAN control options make it straightforward to integrate into most professional drone and robotics platforms.
How do I control pan, tilt and zoom?
Control is sent over standard protocols: S.Bus, serial port or CAN. Through your flight controller or radio you can command heading, pitch and the camera's optical zoom in flight. The exact channel mapping depends on your transmitter and autopilot setup, so plan the wiring before installation.
Can it be used for low-light or night observation?
It has good low-light sensitivity down to about 0.05 lux at F1.6, which helps in dusk and dim conditions, but it is a visible-light zoom camera, not a thermal imager. For true night or heat-signature work you would need a separate thermal payload alongside or instead of this gimbal.
