Dual 1080p OLED screens at up to 100Hz for smooth, sharp HD FPV video
In stock
Fpv
Walksnail Avatar HD VRX / Goggles
The Walksnail Avatar HD Goggles X are CADDX/Walksnail's HD FPV goggles, built around dual 1080p OLED screens running at up to 100Hz to deliver smooth, high-definition video from the Walksnail Avatar HD digital system.
₹26,999 + 18% GST
SKU: BOTBIT-FPV-04 · Best for: HD freestyle FPV flying on the Walksnail Avatar system
Overview
About Walksnail Avatar HD VRX / Goggles.
The Walksnail Avatar HD Goggles X are CADDX/Walksnail's HD FPV goggles, built around dual 1080p OLED screens running at up to 100Hz to deliver smooth, high-definition video from the Walksnail Avatar HD digital system. They include the receiver (VRX) hardware integrated into the goggles, so you receive the HD digital feed, view it on the OLED panels and record onboard footage all in one headset. The Avatar HD system streams up to 1080p/100fps with a low average latency of around 22ms, giving a sharp, responsive HD experience.
Optically, the goggles offer a 50-degree field of view, mechanical IPD adjustment to align the screens to your eyes and a wide diopter range to suit many pilots without glasses. A 7-25.2V (2S-6S) power input lets you run them from common LiPo packs, and microSD support up to 256GB allows onboard DVR recording of your flights. Connectivity is extensive, with HDMI in/out, an analog AV input and an audio port, so the goggles can also display analog or external HD sources.
These goggles are aimed at HD FPV pilots flying the Walksnail Avatar ecosystem who want crisp digital video, onboard recording and flexible inputs in a relatively light, comfortable headset. They are part of a complete digital system and pair with a Walksnail Avatar air unit and camera on the aircraft.
Key features
Why it stands out.
Low ~22ms average latency from the Walksnail Avatar HD digital system
Built-in VRX with onboard DVR recording to microSD up to 256GB

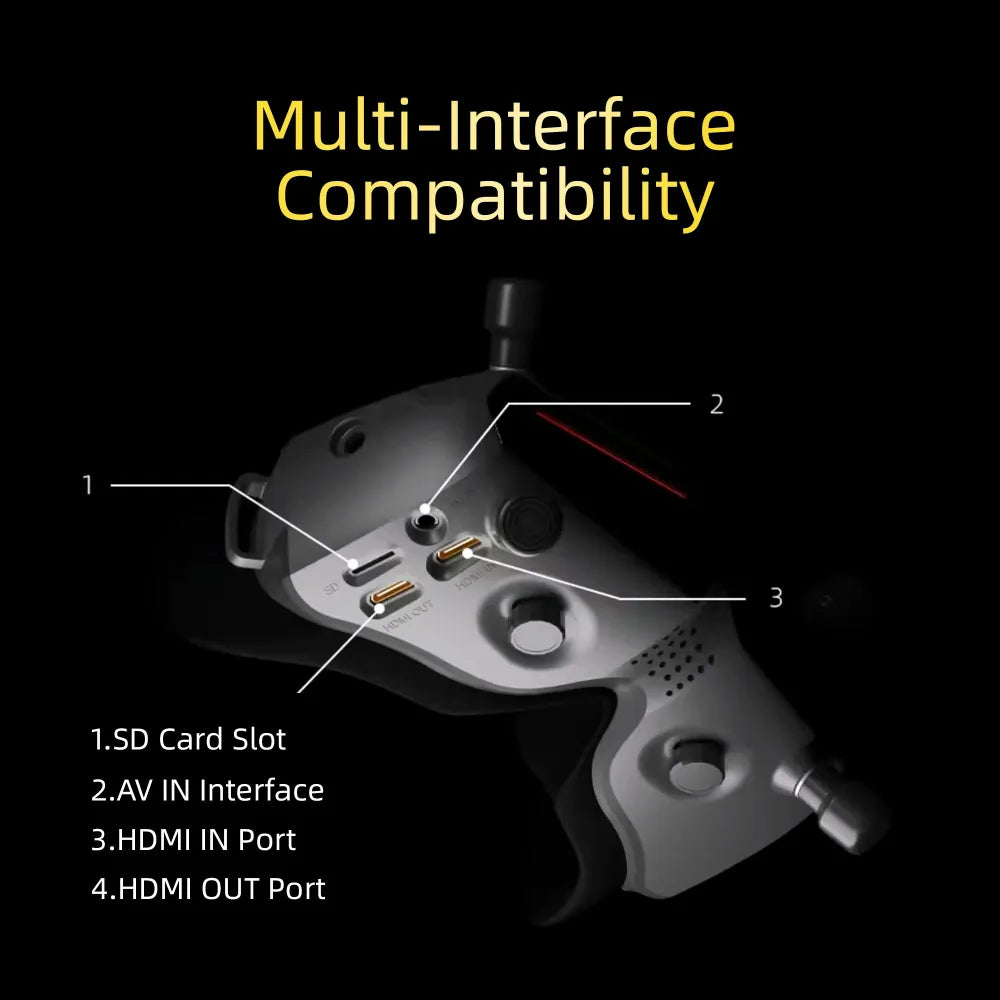

HDMI in/out and analog AV input for HD and analog source flexibility
Mechanical IPD plus wide diopter adjustment for a comfortable, clear view
Specifications
Selection facts.
| Screen Type | OLED |
|---|---|
| Resolution | 1920x1080 @ 100Hz |
| FOV | 50° |
| IPD Range | 57-72 mm |
| Diopter Adjustment | +2.0 to -6.0 |
| Transmission Modes | 1080p100/60, 720p100/60 |
| Min Latency | ~22ms average |
| Frequency Band | 5.725-5.850 GHz |
| Input Voltage | 7-25.2V (2S-6S) |
| Storage | microSD up to 256GB |
| Weight | 290 g |
Applications
Where it is used.
- HD freestyle FPV flying on the Walksnail Avatar system
- Cinematic FPV needing sharp 1080p onboard DVR footage
- Long-range HD FPV cruising and exploration
- Pilots wanting HDMI input for simulators or external HD sources
- Builds mixing HD and analog feeds via the AV input
- Racing and freestyle where low-latency HD video is preferred
Buying guide
How to choose.
Choose the Avatar HD Goggles X if you fly or plan to build on the Walksnail Avatar HD ecosystem and want a single headset that handles HD reception, viewing and DVR recording. The dual 1080p OLED panels and 100Hz refresh give a noticeably crisp image, and the broad input options (HDMI in/out, analog AV) make these goggles flexible beyond just Walksnail video.
Remember these are part of a digital system: to fly you also need a Walksnail Avatar air unit and camera on the aircraft, plus compatible antennas. Confirm firmware compatibility between your goggles and air unit, and budget for spare antennas and a quality microSD card if you want reliable onboard recording. The 7-25.2V input means you can power them from a standard 2S-6S LiPo.
If you are already invested in the DJI ecosystem, DJI Goggles such as the Integra pair with DJI O3 instead and are not cross-compatible with Walksnail. Decide on an HD ecosystem (Walksnail vs DJI vs HDZero) before buying, since the goggles, air unit and antennas need to match. For Walksnail pilots wanting a versatile flagship headset, the Goggles X is a strong pick.
FAQ
Common questions.
Do the Avatar HD Goggles X include the VRX?
Yes. The receiver is built into the goggles, so you receive the Walksnail Avatar HD digital feed, view it on the OLED screens and record onboard DVR all in one headset. You do not need a separate VRX module to fly the Walksnail Avatar system with these goggles.
What air unit do they work with?
They work with the Walksnail Avatar HD digital system, meaning you need a Walksnail Avatar air unit and camera installed on your aircraft. The goggles are not compatible with DJI or HDZero air units, so plan your aircraft hardware around the Walksnail ecosystem.
Can they record video?
Yes. The goggles support onboard DVR recording to a microSD card up to 256GB, capturing your HD feed for review and editing. Use a fast, reliable card and format it before flights to avoid dropped frames during recording.
What resolution and refresh rate do the screens have?
They use dual 1080p (1920x1080) OLED screens running at up to 100Hz, delivering a smooth, high-definition image. Combined with the Avatar HD system's roughly 22ms average latency, the result is a sharp and responsive HD FPV experience for freestyle, cinematic and long-range flying.
Can I use them with analog or HDMI sources?
Yes. The goggles include an analog AV input plus HDMI in and out. This lets you display analog video or external HD sources and feed the goggle image to an external screen, which is handy for simulators, ground stations or sharing your view with spectators.
What battery can I use?
They accept a 7-25.2V input, which covers 2S to 6S LiPo packs, so you can power them from common FPV batteries. A typical setup uses a small 2S or higher LiPo on the headband; check your pack voltage stays within the supported range before connecting.
