Sony 1/3-inch CMOS sensor delivering crisp 1200TVL analog video for clear, detailed FPV feeds
In stock
Fpv
Foxeer Razer Mini V3 1200TVL FPV Camera

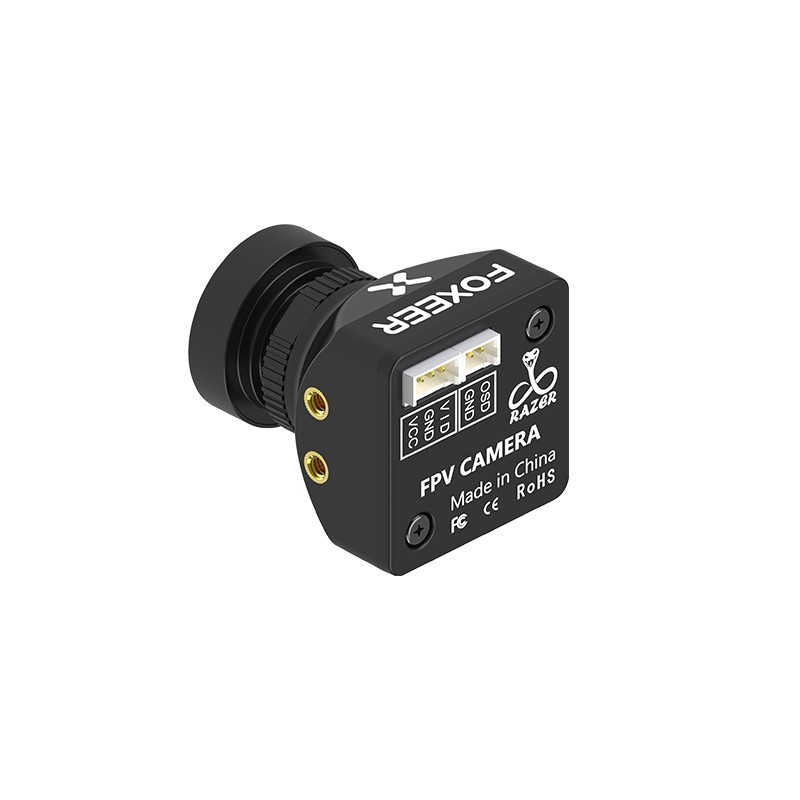

The Foxeer Razer Mini V3 is a compact 1200TVL analog FPV camera built around a Sony 1/3-inch CMOS sensor, designed for pilots who want clean, low-latency video from a small, lightweight package.
₹3,199 + 18% GST
SKU: BOTBIT-FPV-01 · Best for: Freestyle FPV quads running analog video systems
Overview
About Foxeer Razer Mini V3 1200TVL FPV Camera.
The Foxeer Razer Mini V3 is a compact 1200TVL analog FPV camera built around a Sony 1/3-inch CMOS sensor, designed for pilots who want clean, low-latency video from a small, lightweight package. It outputs a standard CVBS analog signal in either PAL or NTSC, switchable on the fly, and ships in the popular 22x22mm 'mini' form factor that drops straight into most freestyle and racing frames. With a 4:3 native aspect ratio and switchable display options, it suits pilots who run traditional analog goggles and want a familiar field of view.
Image quality comes from a combination of 90dB wide dynamic range, 3D noise reduction and an auto electronic shutter that ranges from 1/25 to 1/10000 second, so the camera handles the bright-sky-to-dark-ground transitions that are common in outdoor flying. Minimum illumination of 0.01 lux and selectable Day/Night, Auto, Colour and B&W modes help keep usable video in low light. A wide 5V to 25V input range means it can be powered directly from common 2S to 6S setups without a separate regulator.
This camera is aimed at freestyle and racing FPV builders, sub-250g cinewhoop pilots and anyone replacing a worn analog camera who values low latency and a small footprint. It is a pure analog camera, so it pairs with a separate video transmitter (VTX) and analog goggles rather than a digital HD system.
Key features
Why it stands out.
Roughly 4ms low latency for responsive control in fast freestyle and racing flight
Wide 5V to 25V input range powers directly from 2S to 6S without an extra regulator
90dB WDR plus 3DNR keeps shadows and highlights usable in changing outdoor light
Compact 22x22mm mini form factor and light ~12g weight fit most standard frames
Specifications
Selection facts.
| Sensor | Sony 1/3" CMOS |
|---|---|
| Resolution | 1200TVL |
| Aspect Ratio | 4:3 |
| Signal System | PAL / NTSC switchable |
| Output | CVBS analog |
| FOV (Horizontal) | 98° |
| WDR | 90dB |
| Min Illumination | 0.01 Lux |
| Latency | ~4ms |
| Input Voltage | 5V~25V |
| Power | 140mA@5V / 64mA@12V |
| Dimensions | 22 x 22 mm |
| Weight | ~12 g (excl. cable) |
| Operating Temp | -10° to 50°C |
Applications
Where it is used.
- Freestyle FPV quads running analog video systems
- 5-inch FPV racing drones needing low-latency video
- Sub-250g cinewhoops and lightweight builds
- Replacement camera for aging or damaged analog cameras
- Toothpick and micro builds where weight and size matter
- Hobbyist and training quads on a budget analog stack
Buying guide
How to choose.
Choose the Razer Mini V3 if you are building or maintaining an analog FPV setup and want a reliable, well-balanced camera at the standard 22x22mm size. Confirm your frame uses mini-size camera mounts; Foxeer also makes Micro (19mm) and Nano variants of the Razer line for smaller frames, so match the body size to your frame before buying.
Check your goggles and VTX region settings: the camera supports both PAL (576 lines, wider view) and NTSC (480 lines, slightly lower latency). Most Indian pilots run PAL with analog goggles, but the camera switches either way through its OSD. Remember this is an analog camera and needs a separate 5.8GHz VTX and analog goggles to fly.
If you instead want HD digital video, look at a digital air-unit camera such as the DJI O3 or Walksnail system rather than an analog camera like this one. For pure analog freestyle and racing on a sensible budget, the Razer Mini V3 remains a strong, widely supported choice.
FAQ
Common questions.
Is the Foxeer Razer Mini V3 an analog or digital camera?
It is an analog FPV camera that outputs a CVBS signal in PAL or NTSC. It must be paired with a separate 5.8GHz video transmitter and analog goggles. It does not produce HD digital video like a DJI O3 or Walksnail air unit, which are complete digital systems.
What size frame does it fit?
The Mini V3 uses the standard 22x22mm 'mini' camera form factor, which fits most 5-inch freestyle and racing frames. If your frame uses 19mm Micro or Nano mounts, choose the matching Razer Micro or Nano version instead so it seats correctly.
What voltage can I power it with?
It accepts a wide 5V to 25V input, so you can power it directly from 2S through 6S without an additional regulator. This makes wiring simple whether you run it from a flight controller filtered output or straight off the VTX power pad.
Does it support PAL and NTSC?
Yes. You can switch between PAL and NTSC through the camera's OSD menu. PAL gives a slightly taller image and is common with analog goggles in India, while NTSC offers marginally lower latency. Match the setting to your goggles for the best display.
What aspect ratio does it use?
The Razer Mini V3 has a native 4:3 sensor output, the traditional analog FPV ratio that fills most analog goggle screens. This gives more vertical view, which many freestyle and racing pilots prefer over 16:9 for spotting gates and obstacles.
How heavy is it?
It weighs about 12g excluding the cable, keeping it light enough for 5-inch freestyle and racing builds. The compact 22x22mm body and low weight make it a practical choice when you want to keep all-up weight down without dropping to a Micro or Nano camera.
