Large 1/2-inch CMOS sensor with 1000TVL for natural colour and strong low-light performance
In stock
Fpv

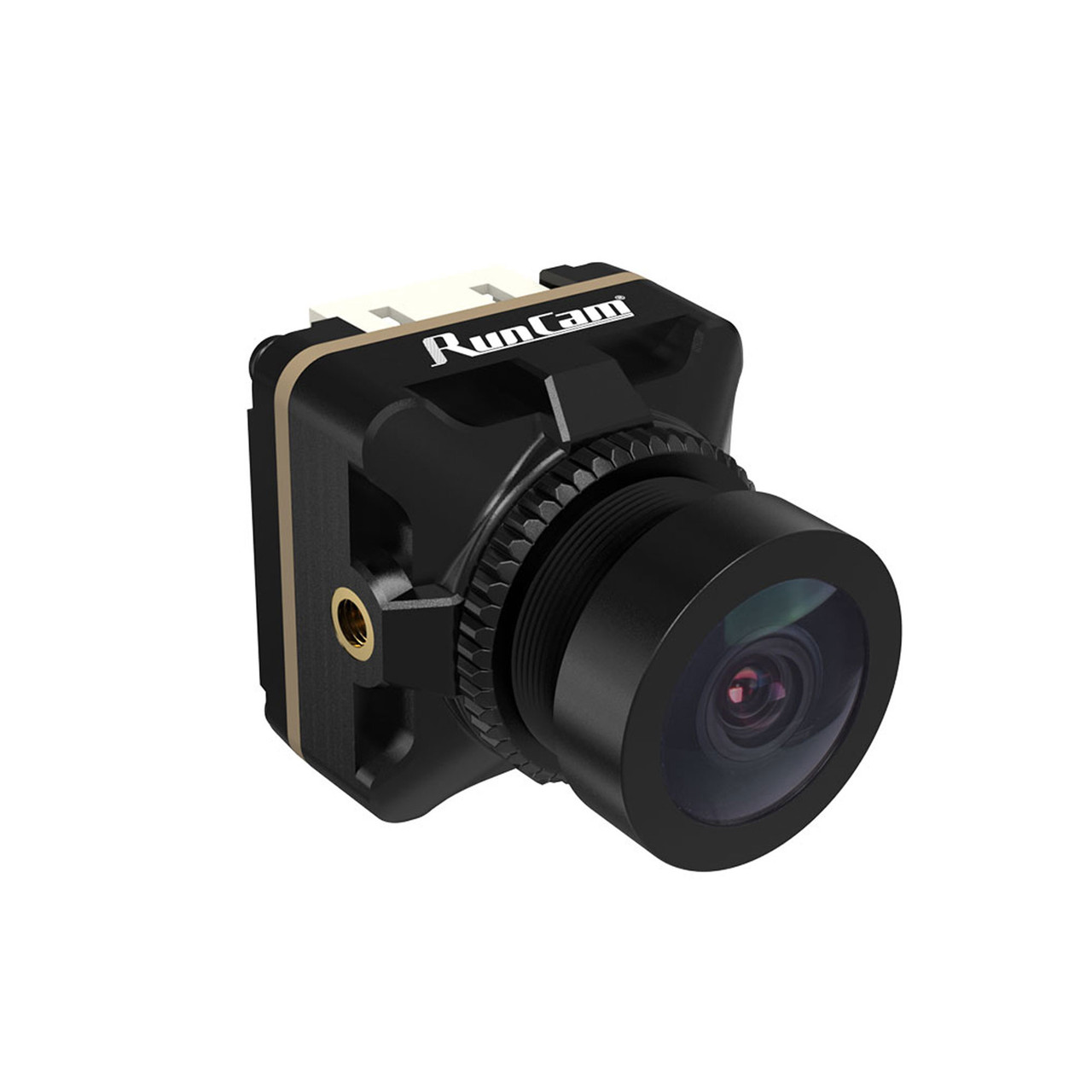

RunCam Phoenix 2 SE/V5 1000TVL FPV Camera
The RunCam Phoenix 2 SE is an analog FPV camera built around a 1/2-inch CMOS sensor delivering 1000TVL of resolution, tuned by RunCam for freestyle and long-range flying where colour, dynamic range and low-light behaviour matter more than raw line count.
₹7,499 + 18% GST
SKU: BOTBIT-FPV-02 · Best for: Freestyle FPV quads where colour and image character matter
Overview
About RunCam Phoenix 2 SE/V5 1000TVL FPV Camera.
The RunCam Phoenix 2 SE is an analog FPV camera built around a 1/2-inch CMOS sensor delivering 1000TVL of resolution, tuned by RunCam for freestyle and long-range flying where colour, dynamic range and low-light behaviour matter more than raw line count. The larger sensor and Global WDR processing give it a characteristic natural colour rendering that has made the Phoenix 2 family a long-standing favourite among freestyle pilots. Output is standard CVBS analog video, switchable between PAL and NTSC and between 4:3 and 16:9 aspect ratios.
Its 2.1mm M12 lens provides a wide field of view (around 155-160 degrees diagonal), and Global WDR helps preserve detail when flying from shaded ground into bright sky. Day/Night handling offers Colour, B&W, EXT and Auto modes for varied lighting, and the camera accepts a wide DC 5-36V input so it can run directly from common battery setups. At roughly 9g and a 19x19mm Micro footprint, it suits a broad range of modern frames.
This camera targets freestyle and cinematic analog pilots who prioritise image character and low-light usability, as well as long-range flyers who want dependable analog video. Like all analog cameras, it requires a separate VTX and analog goggles, and it is not an HD digital system.
Key features
Why it stands out.
Global WDR preserves detail across shaded ground and bright sky transitions
Switchable 4:3 / 16:9 aspect ratio and PAL / NTSC to match any analog goggle
Wide DC 5-36V input runs directly from common 2S to 6S battery setups
Compact 19x19mm Micro body at ~9g fits modern freestyle and long-range frames
Specifications
Selection facts.
| Sensor | 1/2" CMOS |
|---|---|
| Resolution | 1000TVL |
| Lens | 2.1mm M12 |
| FOV | D:160° (4:3) |
| Aspect Ratio | 4:3 / 16:9 switchable |
| Signal System | PAL / NTSC switchable |
| WDR | Global WDR |
| Day/Night | Color / B&W / EXT / Auto |
| Input Voltage | DC 5-36V |
| Current | 200mA@5V / 85mA@12V |
| Weight | ~9 g |
| Dimensions | 19 x 19 mm |
Applications
Where it is used.
- Freestyle FPV quads where colour and image character matter
- Cinematic analog builds and cinewhoops
- Long-range analog FPV with mixed lighting
- 5-inch and 7-inch frames using 19mm Micro mounts
- Outdoor flying with high-contrast sky and shaded ground
- Upgrade from lower-end analog cameras seeking better low light
Buying guide
How to choose.
Pick the Phoenix 2 SE if you value image quality, natural colour and good low-light behaviour over the highest possible line count. Its larger 1/2-inch sensor and Global WDR give it a distinctive look that freestyle and cinematic analog pilots have favoured for years. Confirm your frame uses 19mm Micro camera mounts before ordering.
Decide your aspect ratio and video standard up front: 4:3 fills traditional analog goggles and is most common in India, while 16:9 suits widescreen displays. PAL gives a taller frame and is widely used locally; NTSC offers slightly lower latency. All of these are switchable in the camera menu, so a single unit covers most setups.
Remember the Phoenix 2 SE is an analog camera and needs a separate 5.8GHz VTX and analog goggles. If you want HD digital video out of the box, choose a digital air unit such as the DJI O3 or Walksnail instead. For analog pilots chasing the best freestyle image, the Phoenix 2 SE is a proven option.
FAQ
Common questions.
What makes the Phoenix 2 SE different from cheaper analog cameras?
Its 1/2-inch sensor is larger than the 1/3-inch sensors in many budget cameras, which helps low-light performance and gives a more natural colour rendering. Combined with Global WDR, it handles high-contrast outdoor scenes well, which is why it is popular for freestyle and cinematic analog flying.
Is it an analog or digital camera?
It is an analog FPV camera outputting a CVBS signal in PAL or NTSC. It requires a separate 5.8GHz video transmitter and analog goggles to fly. It is not an HD digital system like the DJI O3 or Walksnail air units, which include their own digital transmission.
Can I switch between 4:3 and 16:9?
Yes. The camera supports both 4:3 and 16:9 aspect ratios, switchable through its menu, plus PAL and NTSC video standards. This lets you match it to almost any analog goggle or monitor, whether you prefer the taller 4:3 view or a widescreen 16:9 image.
What voltage range does it accept?
It runs on a wide DC 5-36V input, so it can be powered directly from 2S through 6S setups without a separate regulator. This flexibility makes it easy to wire into both small freestyle quads and larger long-range platforms.
What size frame does it fit?
The Phoenix 2 SE uses a 19x19mm Micro camera form factor, which fits most modern 5-inch and 7-inch frames designed for Micro cameras. Check your frame's camera mount spacing before ordering to ensure a clean fit.
Is it good for long-range flying?
Yes. Its strong dynamic range, natural colour and good low-light handling make it well suited to long-range analog FPV, where varied lighting and clear video matter. Paired with a capable long-range VTX and antennas, it is a dependable choice for distance flying.
