Full-range long-range control in one of the smallest receivers available at ~0.5g
In stock
Telemetry Antennas

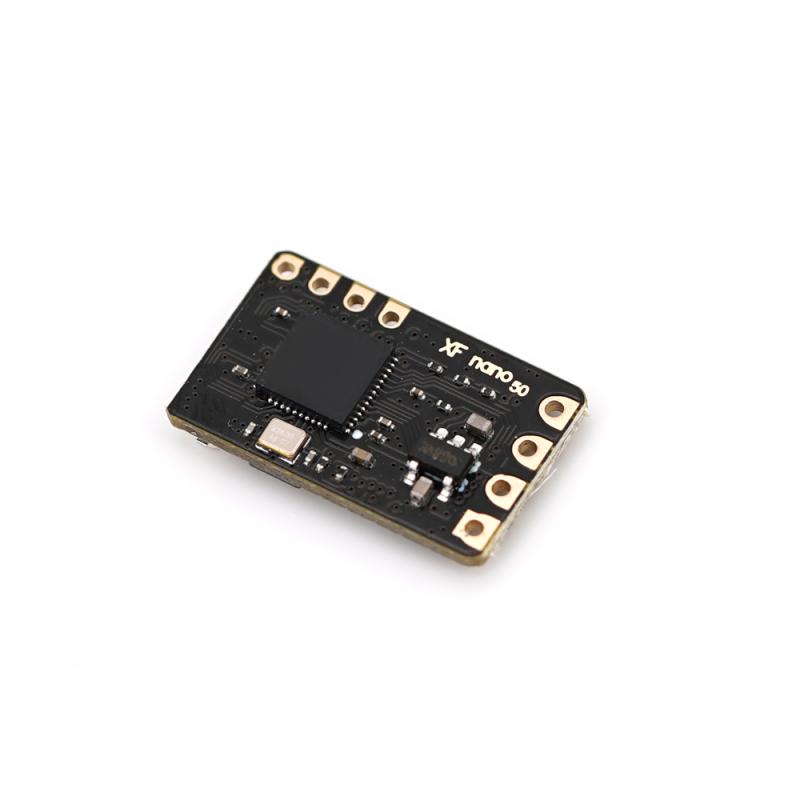

TBS Crossfire Nano RX (long-range control)
The TBS Crossfire Nano RX is a long-range UHF control receiver from Team BlackSheep, designed to pair with a Crossfire transmitter module for rock-solid R/C control of FPV drones and long-range aircraft.
₹3,999 + 18% GST
SKU: BOTBIT-TEL-05 · Best for: Long-range FPV freestyle and cruising drones
Overview
About TBS Crossfire Nano RX (long-range control).
The TBS Crossfire Nano RX is a long-range UHF control receiver from Team BlackSheep, designed to pair with a Crossfire transmitter module for rock-solid R/C control of FPV drones and long-range aircraft. Operating in the 868/915MHz band, it is one of the smallest full-range receivers in the industry at just 11 x 18 x 11mm and roughly 0.5g, making it ideal for tight micro and freestyle builds where space and weight are at a premium. Despite its size, it offers genuine long-range performance up to tens of kilometres with appropriate antennas and settings.
The Nano RX outputs the high-bandwidth, low-latency CRSF protocol natively, and also supports SBUS, PPM and PWM, so it integrates with virtually any modern flight controller. It supports up to 12 channels and provides a back-channel for telemetry, feeding battery, RSSI/LQ and GPS data back to your radio. As part of the Crossfire ecosystem it benefits from frequency-agile, robust link technology and over-the-air firmware updates via the TBS Agent tools.
It is aimed at FPV pilots, long-range cruisers and professional operators who want dependable control link range and the flexibility of the CRSF protocol in the smallest possible package. Note this is a control-link receiver, not a MAVLink telemetry data modem like the SiK or RFD radios.
Key features
Why it stands out.
Native CRSF protocol for high-bandwidth, low-latency control plus SBUS, PPM and PWM outputs
Telemetry back-channel returns battery, RSSI/LQ and GPS data to your radio
Up to 12 channels and broad flight-controller compatibility for any build
Part of the TBS Crossfire ecosystem with frequency-agile link and OTA firmware updates
Specifications
Selection facts.
| Frequency band | 868/915 MHz |
|---|---|
| Dimensions | 11 x 18 x 11 mm |
| Weight | ~0.5 g |
| Input voltage | 3.3 V to 8.4 V |
| Channels | Up to 12 |
| Output protocols | CRSF, SBUS, PPM, PWM |
| Signal format | CRSF |
| Telemetry | Bidirectional (back-channel to radio) |
Applications
Where it is used.
- Long-range FPV freestyle and cruising drones
- Micro and lightweight builds where receiver size and weight are critical
- Fixed-wing long-range and cross-country aircraft control links
- Reliable control link in RF-congested race or event environments
- Professional inspection and cinematography drones needing CRSF
- Builds requiring telemetry feedback (battery, RSSI/LQ, GPS) to the radio
Buying guide
How to choose.
Understand that the Crossfire Nano RX is a control-link (R/C) receiver, not a MAVLink data telemetry modem. It carries stick commands and a telemetry back-channel to your radio, while autopilot telemetry to a GCS still uses a separate radio such as the SiK or RFD modems. Many long-range builds use both together.
The Nano RX requires a matching TBS Crossfire transmitter module (full-size or Nano TX) on your radio; it will not work standalone. Budget for the TX module if you are not already in the Crossfire ecosystem, and keep both ends on compatible firmware via the TBS Agent tools.
It operates in the 868/915MHz UHF band. Confirm the legal allocation and permitted power for long-range control in India before operating, and choose the correct regional firmware/band setting. For the smallest builds the standard Nano RX is ideal; consider the Diversity or Pro variants if you need dual antennas or higher output.
FAQ
Common questions.
Is the Crossfire Nano RX a telemetry modem?
No. It is a long-range R/C control receiver that carries stick commands plus a telemetry back-channel to your radio. Autopilot-to-GCS MAVLink telemetry still needs a dedicated data radio such as the Holybro SiK or RFD900-series modems.
Do I need a transmitter module to use it?
Yes. The Nano RX must pair with a TBS Crossfire transmitter module (full-size or Nano TX) on your radio; it cannot operate standalone. Keep both ends on compatible firmware using the TBS Agent configuration tools.
Which flight controllers does it work with?
It outputs CRSF natively and also supports SBUS, PPM and PWM, so it works with virtually any modern flight controller. CRSF is preferred for low latency and to enable the telemetry back-channel.
How small and light is it?
At about 11 x 18 x 11mm and roughly 0.5g it is one of the smallest full-range receivers available, which makes it well suited to micro and weight-sensitive builds without sacrificing range.
What range can I expect?
As part of the Crossfire long-range ecosystem it can achieve tens of kilometres of control range with suitable antennas, settings and line of sight. Actual range depends on transmit power, antennas, environment and air rate.
Does it support telemetry to my radio?
Yes. It provides a bidirectional link that returns telemetry such as battery voltage, RSSI/LQ and, with a GPS source, position data to your transmitter, viewable on the radio's screen or OSD.
