SunnySky X2212 980KV Brushless Motor

The SunnySky X2212 980KV is a workhorse 2212-class brushless outrunner that has become a default choice for entry-level and mid-size multirotors and small fixed-wing aircraft.

₹1,750 + 18% GST

SKU: BOTBIT-MTR-03 · Best for: Entry-level and mid-size multirotor quadcopters (350-450 class)

Qty

Overview

About SunnySky X2212 980KV Brushless Motor.

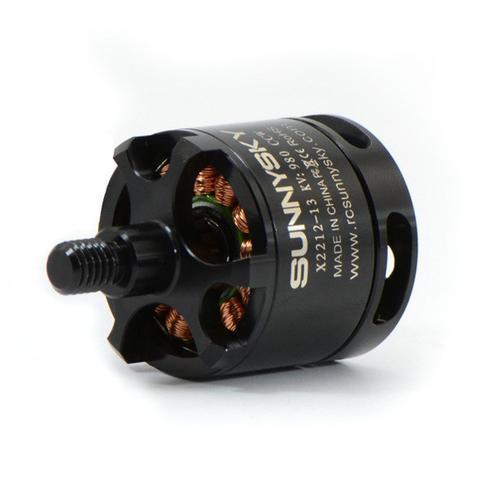

The SunnySky X2212 980KV is a workhorse 2212-class brushless outrunner that has become a default choice for entry-level and mid-size multirotors and small fixed-wing aircraft. With a 22mm-diameter, 12mm-tall stator in a 12N14P (12-slot, 14-pole) configuration and a moderate 980KV winding, it is tuned for swinging larger, efficient propellers (8 to 10 inches) at sensible RPM on 3S-4S LiPo — the combination that gives long, stable hover and smooth thrust rather than raw speed.

SunnySky builds the X2212 with a 6061-T6 aviation-grade aluminium bell, a 420 stainless steel solid shaft and imported NMB bearings, with hand-wound coils for balanced, low-vibration running. It draws about 0.6A no-load at 10V, has roughly 92mΩ internal resistance, and is rated for around 26A continuous (385W), making it easy to pair with common 20-30A ESCs in quad, hex and small plane builds.

This motor suits hobbyists building 350-450 class quadcopters, FPV camera platforms, hexacopters and 3D/sport fixed-wing models who value efficiency and reliability over outright performance. Its proven, widely supported design and APC 8038/1038/1047/9047 propeller compatibility make it a safe, well-documented choice for first builds and dependable utility multirotors alike.

Key features

Why it stands out.

Moderate 980KV winding swings efficient 8-10 inch props for long, stable hover on 3S-4S LiPo.

6061-T6 aluminium bell and 420 stainless steel solid shaft give a rigid, durable, low-vibration structure.

Imported NMB bearings and hand-wound coils deliver smooth, balanced running and dependable service life.

~26A continuous / 385W rating pairs easily with common 20-30A ESCs for quad, hex and plane builds.

Proven, widely documented 2212-class design with broad propeller and ESC compatibility for easy setup.

Specifications

Selection facts.

Motor class	2212
KV rating	980 KV
Configuration	12N14P (12-slot / 14-pole)
Stator dimensions	22 x 12 mm
Body size	27.5 x 30 mm
Shaft diameter	3 mm
No-load current	0.6A @ 10V
Internal resistance	92 mΩ
Max continuous current	26A (30s)
Weight	~55-57 g

Applications

Where it is used.

Entry-level and mid-size multirotor quadcopters (350-450 class)
FPV and aerial-photography camera platforms needing stable hover
Hexacopter builds requiring efficient, reliable lift motors
Small to medium 3D and sport fixed-wing RC aircraft
DIY and educational drone projects on 3S-4S LiPo
Utility multirotors prioritising flight time and dependability

Buying guide

How to choose.

The X2212 980KV is the efficiency-oriented member of the X2212 family — choose it when you want long flight times and stable lift with 9-10 inch props on 3S-4S, rather than the speed you would get from higher-KV 1250/1400KV versions. For a quad, buy a matched set of four (or six for a hex) and verify the rotation/thread you need; SunnySky offers CW and CCW options in many listings.

Match propellers and ESCs to the recommended envelope: SunnySky lists APC 8038, 1038, 1047, 9047 and 9045 props and a 20-30A ESC. Sizing each motor at roughly 26A continuous means a 30A ESC gives useful headroom. Beware of counterfeit X2212 motors in the market — buy from reputable sources and check bearing smoothness and magnet feel on arrival.

For India buyers, confirm the exact KV (the 2212 body is sold in 980, 1250, 1400 and 2450KV), the shaft/prop-adapter style, and whether accessories (prop adapters, mounting screws) are included. The 980KV is the right pick for efficient camera and utility platforms; step up in KV only if you specifically want a faster, smaller-prop setup.

FAQ

Common questions.

What is the X2212 980KV best suited for?

It is an efficiency-focused motor for entry to mid-size multirotors and small fixed-wing models. The moderate 980KV swings larger 9-10 inch props at sensible RPM on 3S-4S, giving long, stable hover ideal for camera and utility platforms rather than racing.

Which propellers and batteries should I use?

SunnySky recommends APC 8038, 1038, 1047, 9047 and 9045 props on 3-4S LiPo. Larger props on 3S favour efficiency and flight time; smaller props or 4S give more thrust headroom. Stay within the ~26A continuous rating.

What ESC rating does it need?

SunnySky lists a 20-30A ESC for the X2212 980KV. Since the motor is rated around 26A continuous, a 30A ESC is a safe choice that leaves headroom for transient peaks during aggressive manoeuvres or heavier loads.

How much thrust does it produce?

Thrust depends entirely on the propeller and battery, so a single figure is misleading. With recommended 9-10 inch props on 3-4S it produces ample lift for 450-class quads; consult a thrust chart for your exact prop/cell combination.

How can I avoid counterfeit X2212 motors?

Fakes are common for this popular motor. Buy from reputable retailers, check for genuine SunnySky branding, smooth NMB bearings, strong magnet detents and clean hand-wound coils, and be wary of unusually low prices.

Does it come in CW and CCW versions?

SunnySky offers the X2212 in clockwise and counter-clockwise options in many listings. For a quad you need two of each so prop nuts self-tighten; confirm the rotation/thread before ordering for your frame.
